WW-C09 · Light-commercial wheels

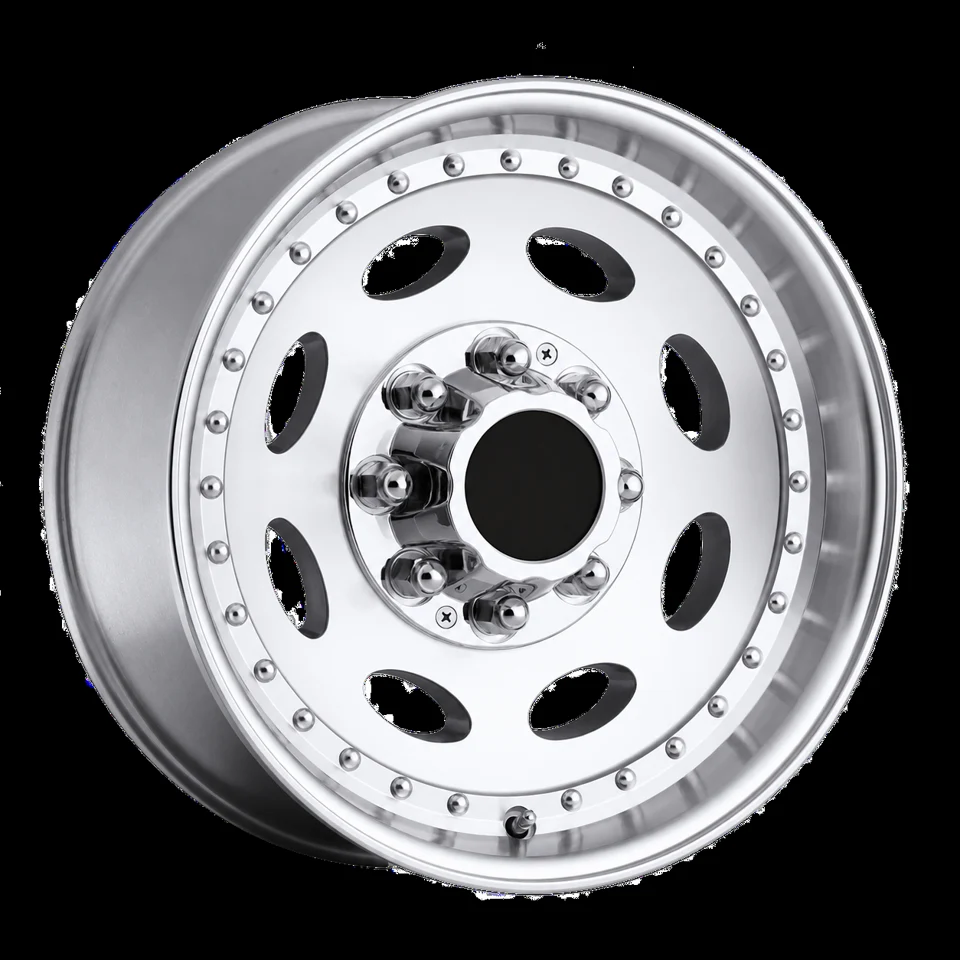

8-Lug Light-Commercial Alloy Wheel
Compatible trailers and light-commercial applications.
| Wheel / rim size | 16 x 6 in (406.4 x 152.4 mm) |
|---|---|
| Bolt pattern | 8 x 6.500 in (8 x 165.1 mm) |
| Pilot bore | 4.90157 in (124.5 mm) |
| Offset | 0 in (0 mm) |
Selection configuration; sample, load rating and fitment approval are required before order.
Construction & Material
One-piece alloy wheel with eight-lug mounting and a machined face.
Options
Machined or painted finish; center cap optional and excluded unless specified.
Size options
Dimensions and mounting interface are confirmed against the approved model drawing.
Procurement Value
A clear 8-lug configuration supports distributor assortments and repeat replenishment.
Mounting & Selection
Hub/stud pilot, bolt circle, bore, disc thickness, outset/inset, axle position, required wheel load and inflation pressure.
Standards & Qualification
FMVSS 120 applicability and rim markings; SAE J267 test program as applicable. No certification is asserted.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
